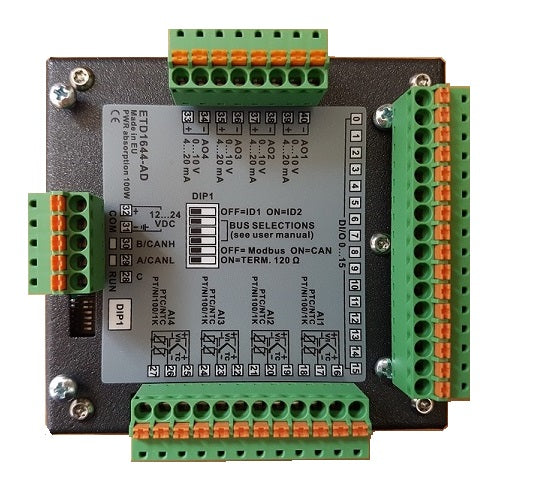

Pixsys ETD1644 Modular I/O expansion for TD range

ETD1644 I/O Expansion Module for TD range
16 programmable digital I/O outputs PNP- 3 Encoder Push-Pull res. 32 bit max 80 KHz 4 analogue inputs (res. 16bit) selectable: Thermocouple type K, J, S, R (automatic compensation of the cold junction 0-50 degC, accuracy @ 25degC +/-0,2% F.S. or +/-1 digit), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), linear inputs (0) 4-20mA (40000 points), 0-10V (54000 points), 0-40mV (16000 points), potentiometers F.S. 6/150Kohm (50000 points) 4 programmable analogue outputs 4-20 mA/ 0-10 Volt
